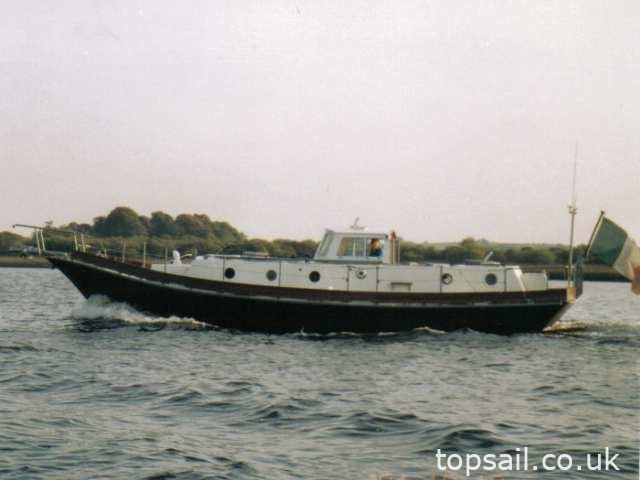

2001 Roberts Spray 40
General Specification
Construction
- Steel construction
- Hull professionally constructed by Lavelle Engineering
- Fitted out by owner with professional assistance

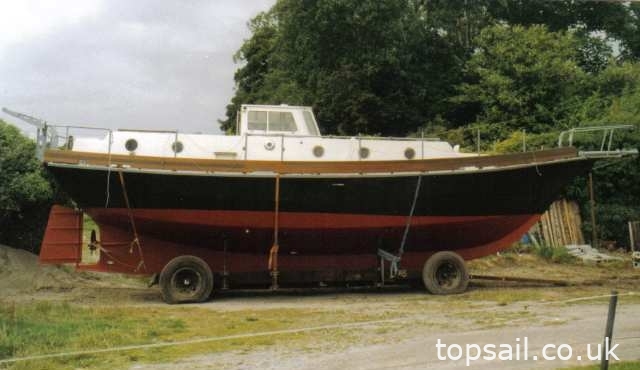

- Steel multichine with rounded chine bars on hull and softened angles on superstructure
- All steel work is fair with no filling
- Three steel bulkheads
- Mast compression post

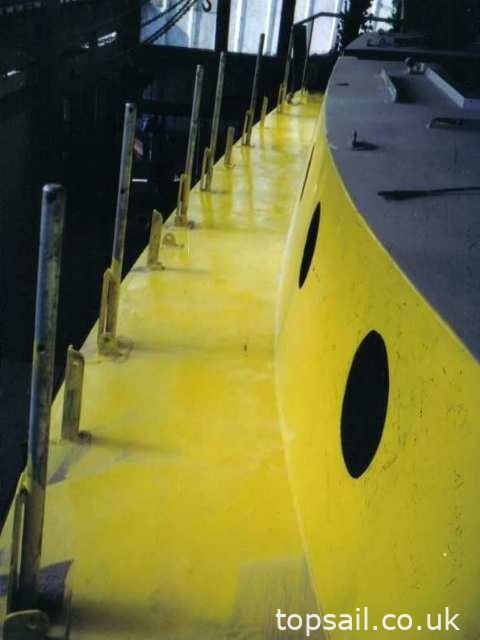

- Bulwarks are ex 1.25in iroko planks through bolted to galvanised brackets
- Continuously welded steel gunwale fender
- Under deck and inside of cabin insulated with polyurethane and phenolic panels

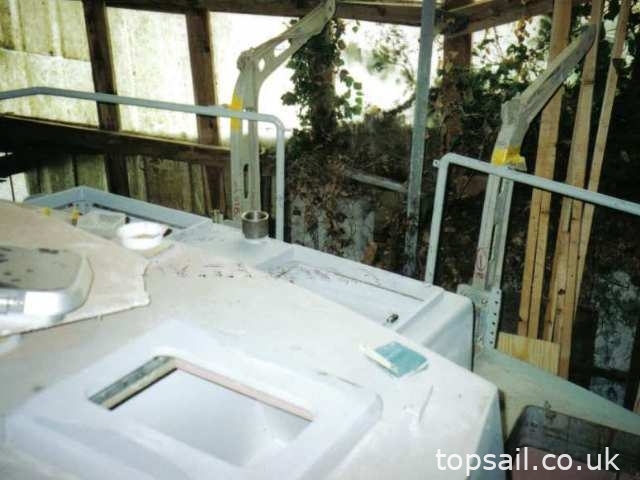

- All deck equipment is galvanised or stainless including lazarette lockers and davits

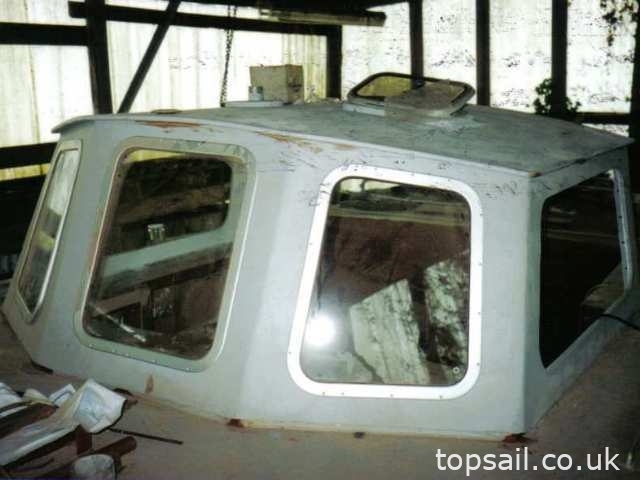

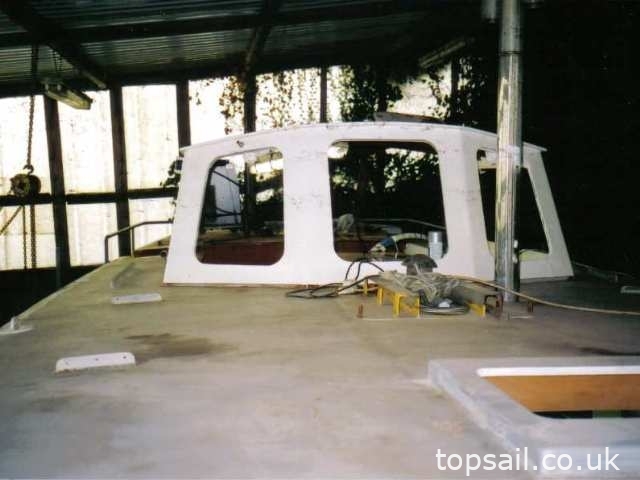

- Wheel shelter strongly constructed of epoxy sheathed marine ply over an iroko and stainless steel frame

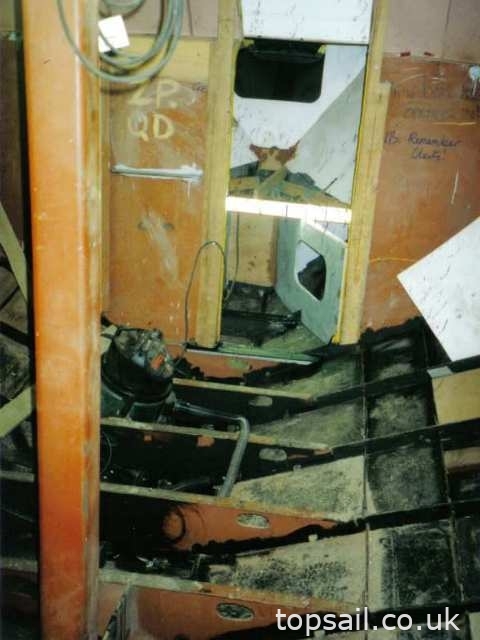

- Accommodation has been arranged to allow convenient inspection of the internal hull sides and bilges
- All stringers are notched to allow any condensation dampness to collect in the dedicated sump in the box keel
- All steel work has been shot blasted and painted (mostly with International commercial paints)

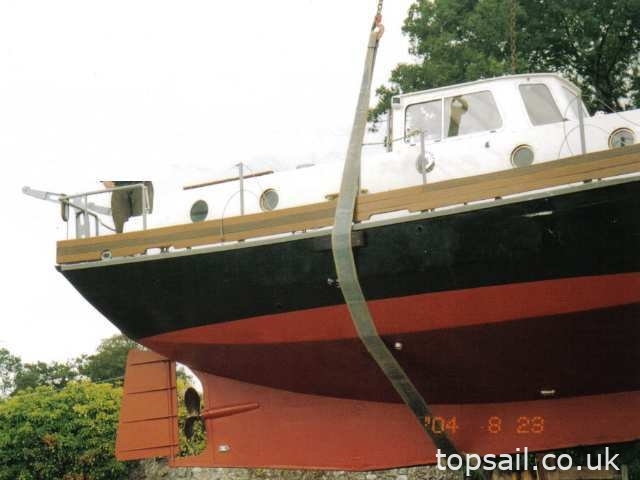

- Six aluminium anodes are fitted and the underwater area was antifouled with Micron in 2004
- Designed displacement including rigging: 16.5 tons
Mechanical & Electrical

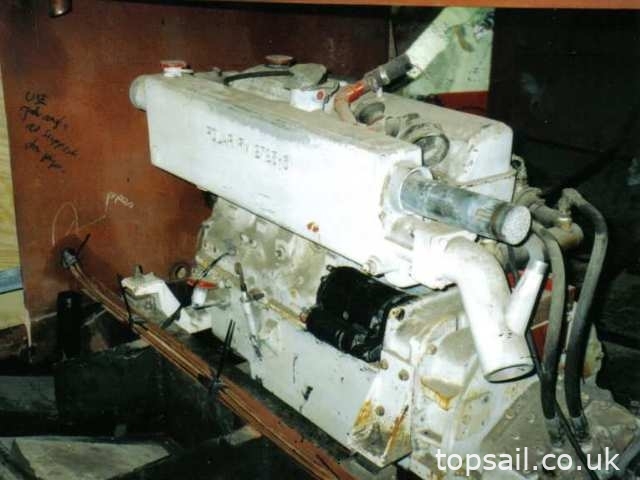

- Ford 2715 6 cylinder diesel (approximately 1984) with later PRM 301 2:1 reduction box, both rebuilt late 90’s
- Alternator, starter motor, stern gear, propeller, raw water and exhaust systems all new 2000
- 80 gallon stainless steel fuel tank

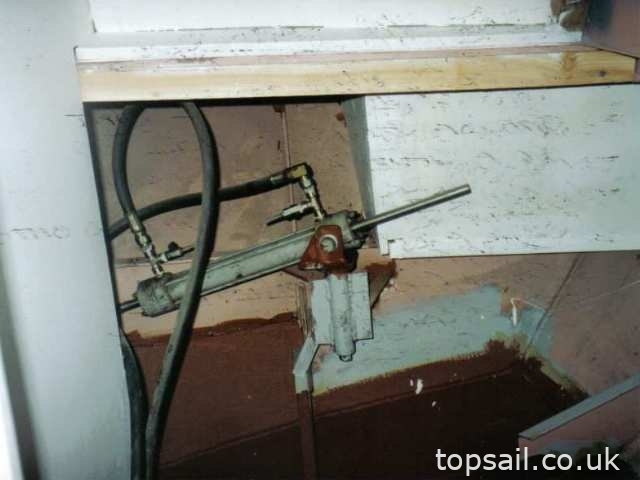

- Hand hydraulic steering with emergency rudder stock extension
Rigging & Sails
- Mast step, bowsprit, chain plates, sheet tracks and winch pads are all in position
- Long lengths of quarter sawn Sitka Spruce are available for the mast if required

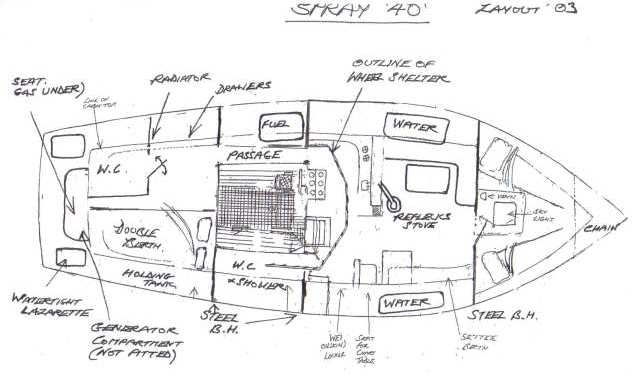

Accommodation
- 6 berths in 3 cabins

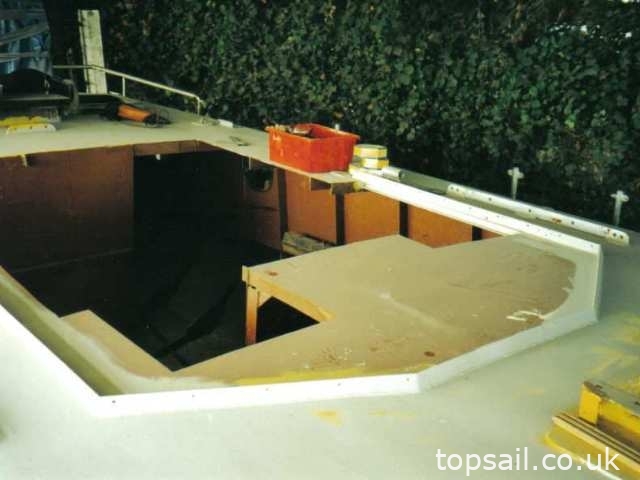

- Deep, spacious centre cockpit
- Cockpit seats and sole are in laid teak, with saloon deckhead in grooved teak
- Double berth (aft cabin), v-berth and two single settee berths
- Pressurised water with marine calorifier

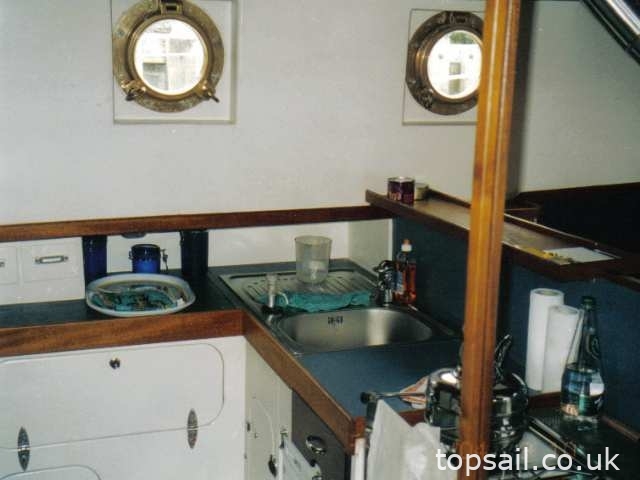

- Galley with gas cooker (with flame failure) and fridge
- Two heads compartments, one with sea toilet and shower, one with sea toilet (en-suite to aft cabin)
- Reflecks stove (saloon) with back boiler and radiator (aft cabin)
- 120 gallon water tank

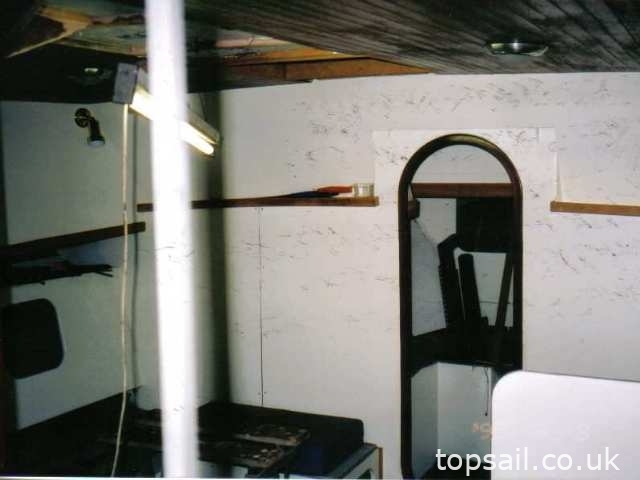

- Fore and aft cabins decoratively lined with blue ‘flotex’, with all soft furnishings in matching blue cloth
- Most furniture is constructed from marine ply (veneered, varnished or painted)
- Teak trimming
- Internal door frames are by ‘Laminedge’ in laminated teak
- 6ft plus headroom
Equipment
- NAVIGATION: Furuno DGPS, echosounder, windspeed and log, Sailor VHF with matching FM/SW/MW receiver, navigation lights
- SAFETY: Coastline 6 man liferaft

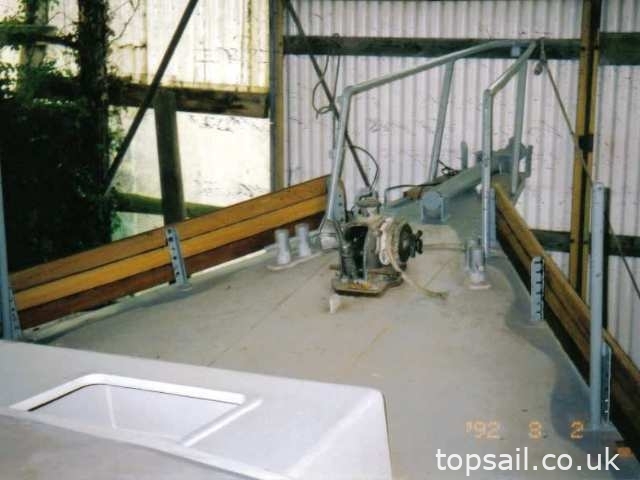

- DECK: 45lb CQR anchor (2000) with 75m of 11mm calibrated chain, 1960’s SL two speed anchor windlass (rebushed, in excellent condition), 4 two speed sheet winches, 3 halyard winches, warps, fenders
Remarks:
This is a great opportunity to purchase a recently completed (excluding rigging) Spray, only for sale due to the owners changed retirement plans. The professionally constructed hull and superstructure have been fitted out to a robust and elegant standard. This boat is fully operational for power cruising, and has all the deck equipment in place for convenient rigging. Her owner states that, whilst they obviously cannot comment on her performance under sail, her performance under power has been well monitored and she has impressed many with her smoothness and manoeuvrability, and that in common with most Sprays she is more easily driven than her appearance suggests. She will make a comfortable, robust and powerful power or sailing cruiser for her new owners.
The owner of this vessel is willing to consider a part exchange for a smaller sailing cruiser (30ft-35ft) with a draft of less than 4ft 6in and a large aft cockpit.
